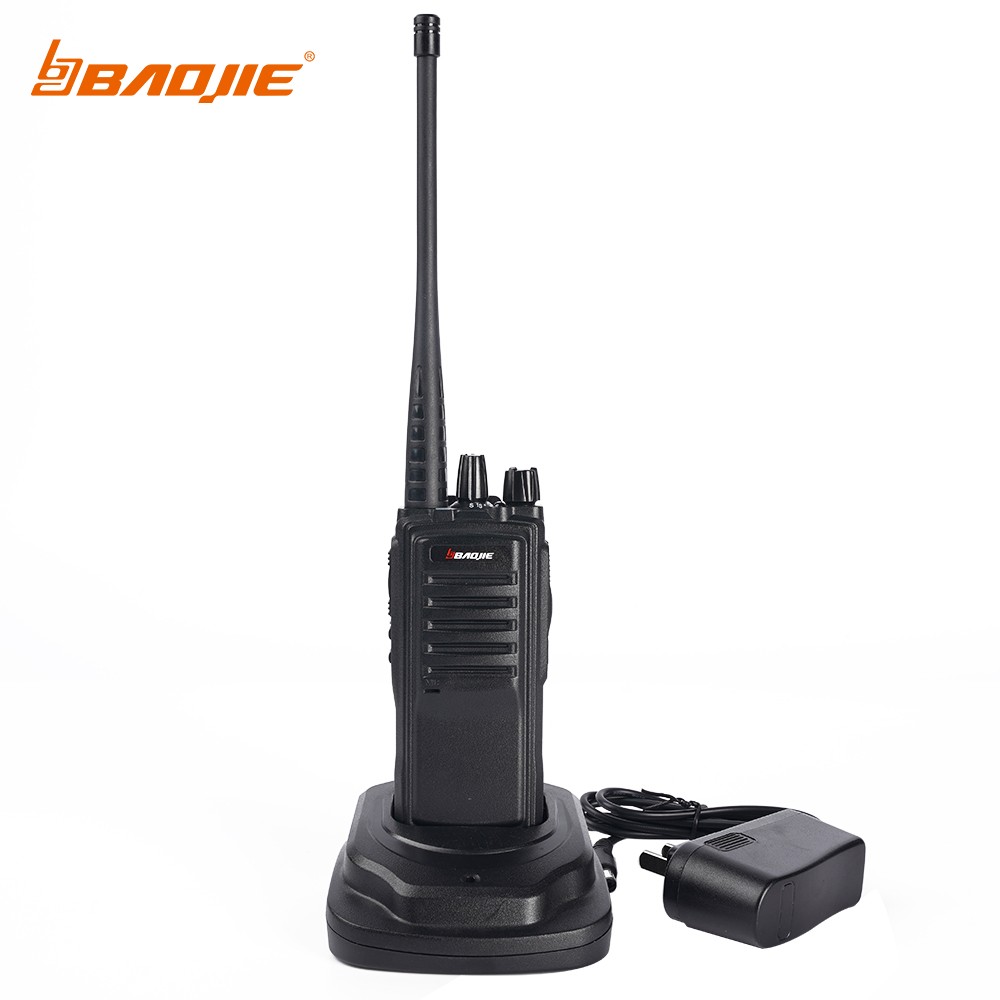

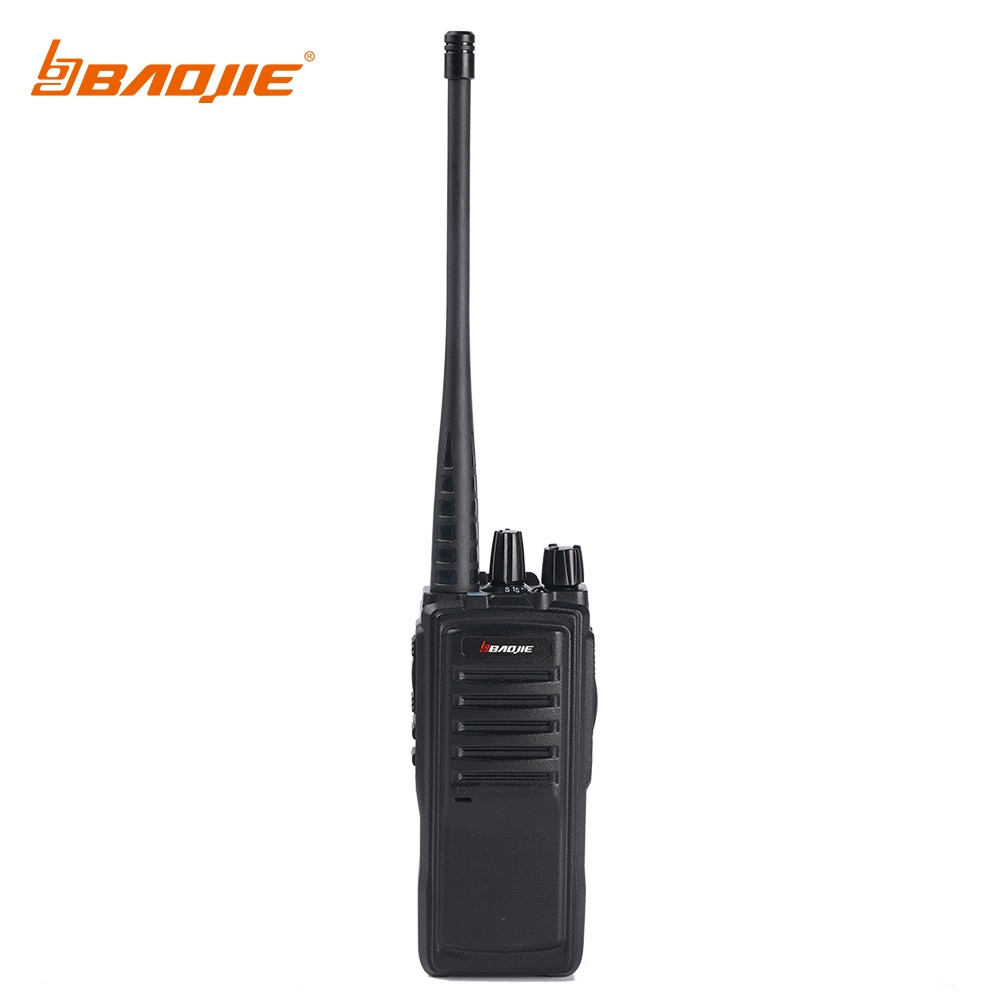

BJ-E33 Interphone

■ new type!! high pwoer output 8W & high cost-effective walkie
talkie BJ-E33 with long talk range 15km power two way radio
■ High capacity li-on battery
■ Setting Battery Save
■ Monitor
■ backlight
■ Setting QT and DQT
■ TOT
■ Battert indicator
■ Voice prompt
■ Busy channel lock
General Specifications
Frequency range400-470mhz
Memory Channels16
Channel Space25/12.5KHz
Working ModeCo-channel or dis-channel simplex
Operate VoltageDC7.4V（Li-ion battery）
Battery2200mah(li-on)(Standard)
Average battery lifeabout 20hrs
(at 5/5/90 duty cycle with battery saver)
Frequency stability±2.5ppm
Operating Temperature-20°c/+50°c
Antenna Impedance50Ω
Dimension139*56*40mm
Weight468g
NameTWO WAY RADIO
Transmitter
Power Output8w
Maximum Deviation≤5KHz
Audio Distortion≤3%
Modulation mode16k F3E
Sparious radiation≥-60dB
transmitter currentin lower power ≤0.8A、in high power ≤2A
Receiver
RF Sensitivity<0.18μV
Squelch sensivity≤0.2μV
intermodulation rejection60dB
audio output power≥500mA
squelch standby≥20mA
Spurious Response≥60dB
