Backpack Repeater

PRODUCT > Repeater > Backpack Repeater
    • 1
    • 2
    • 3
    • 4

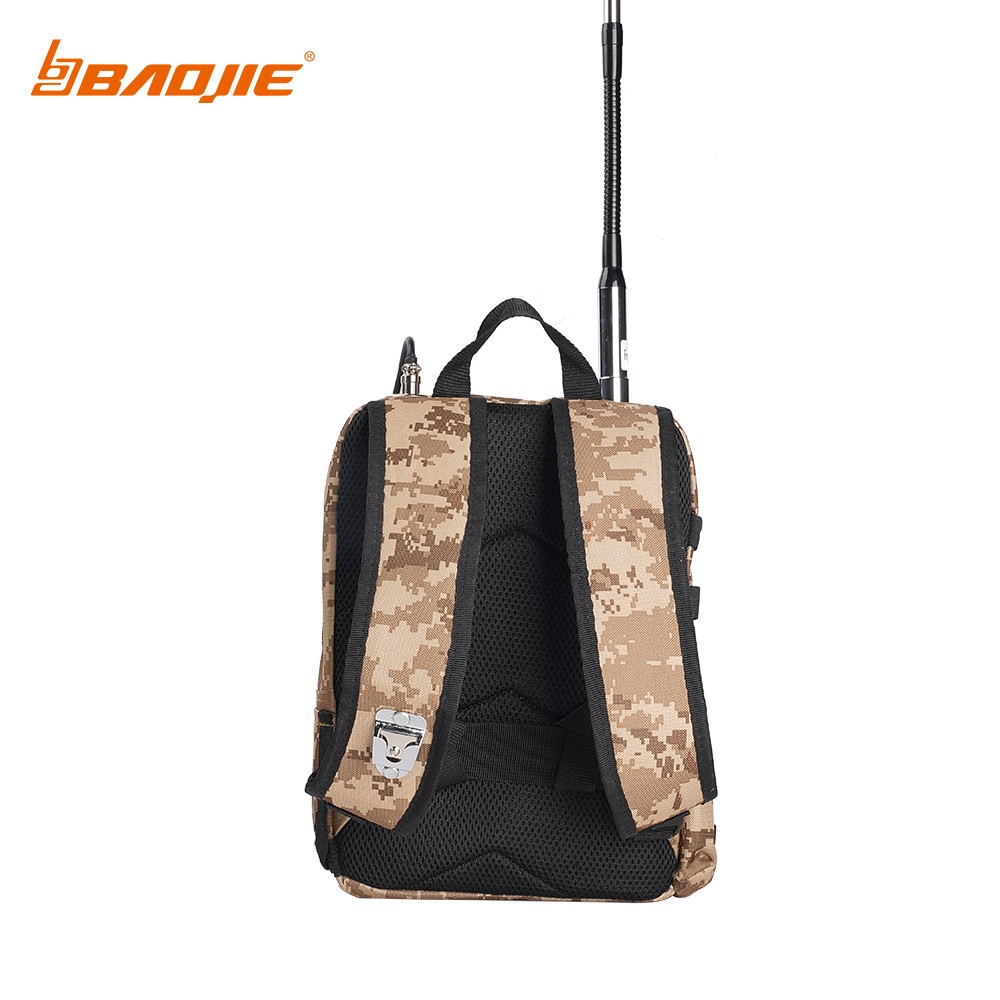

Backpack Repeater

1. high-capacity lithium battery
2. Output Power: 10W max
3. Frequency Range :400-470MHz
4. frequency interval:. 10MHz
General
Frequency Range400-470MHZ
Channel spacing25KHz/12.5KHz
Operate modeDuplex relay broadband and narrowband FM
Transceiver frequency interval10MHz
Operating Temperature Range-30°C -----60°C，±2.5PPM
Power SupplyDC12-13.8V
AM modeFM 16F3
Weightabout 4KG
Lithium Battery20,000 Milliampere
Receiver
Simplex Sensitivity:≥0.25uv(12dB SINAD)
Selective≤70db
Immunity>70db
Distortion<5%
FrequencyMonitor output has de-emphasis, filtering-6db per octave
Transmitter
Output Power5-10W
Clutter radiation<70db
失真小于3%
FrequencyRelay status 0db, then directly call microphone pre-emphasis, +6 db per octave
CPU Controller
Receiver transmitter frequency settings, automatic repeater set
PC Programming Cable
CTCSS and DCS Editor
