General Specifications | |
Frequency range | 400-470mhz |
Memory Channels | 16 |
Channel Space | 25/12.5KHz |
Working Mode | Co-channel or dis-channel simplex |
Operate Voltage | DC7.4V(Li-ion battery) |
Battery | 2200mah(li-on)(Standard) |
Average battery life | about 20hrs |
(at 5/5/90 duty cycle with battery saver) | |
Frequency stability | ±2.5ppm |
Operating Temperature | -20°c/+50°c |
Antenna Impedance | 50Ω |
Dimension | 139*56*40mm |
Weight | 468g |

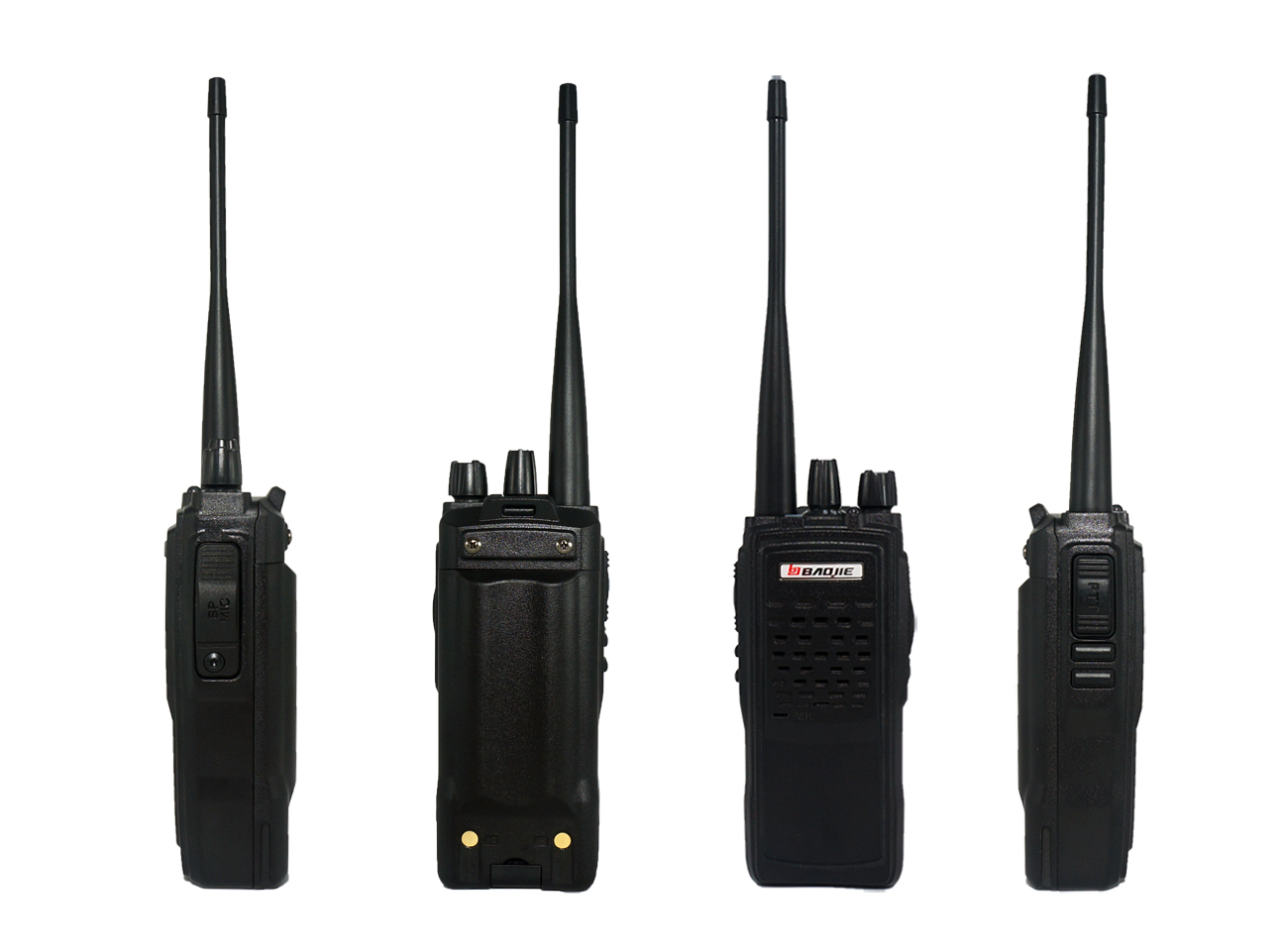

Name | TWO WAY RADIO |
Transmitter | |
Power Output | 8w |
Maximum Deviation | ≤5KHz |
Audio Distortion | ≤3% |
Modulation mode | 16k F3E |
Sparious radiation | ≥-60dB |
transmitter current | in lower power ≤0.8A、in high power ≤2A |
Receiver | |
RF Sensitivity | <0.18μV |
Squelch sensivity | ≤0.2μV |
intermodulation rejection | 60dB |
audio output power | ≥500mA |
squelch standby | ≥20mA |
Spurious Response | ≥60dB |
